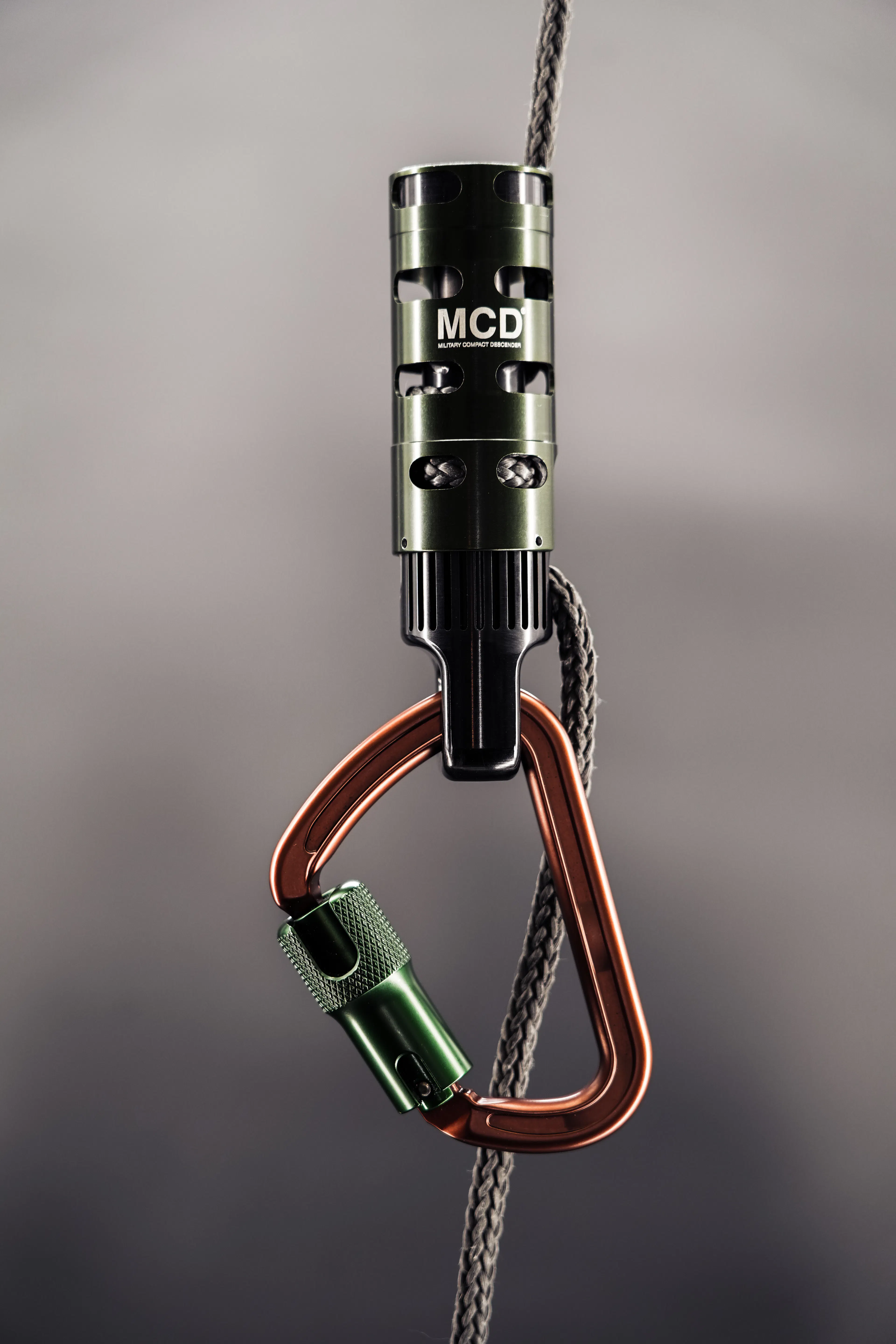

The Military Compact Descender® (MCD®)
The Military Compact Descender® (MCD) is a Personal Lowering Device engineered for military safety and operational environments. Designed for simplicity and control, the MCD enables operators to descend using one hand—freeing the other for mission-critical tasks.
Operational Advantage
Field tested for 20+ years, the MCD is designed for deployment in environments where controlled descent or emergency egress is required, including elevated work and high-risk environments. Its compact, self-contained design ensures it can be carried by personnel and deployed without reliance on external systems.
Contact UsSystem Overview

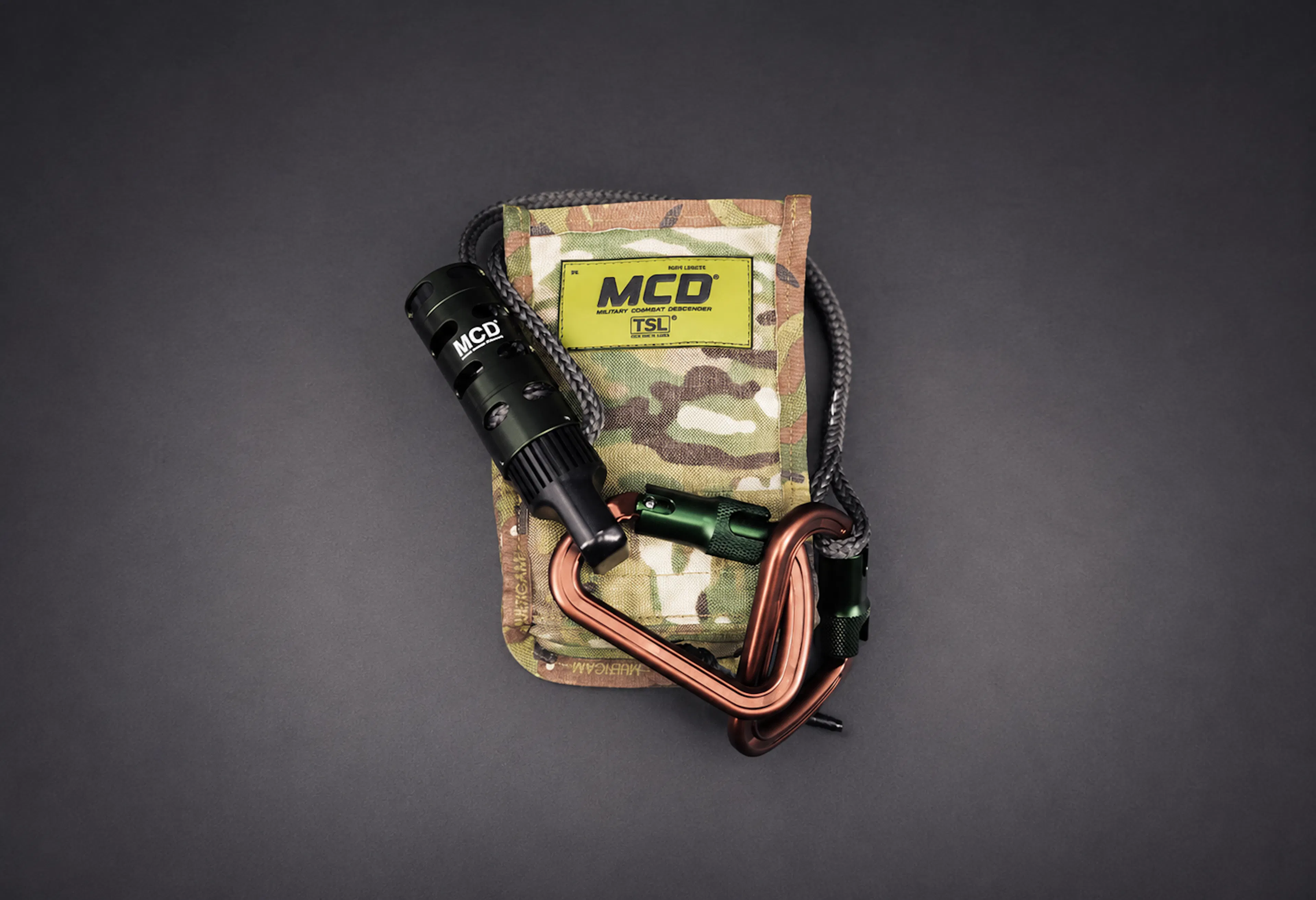

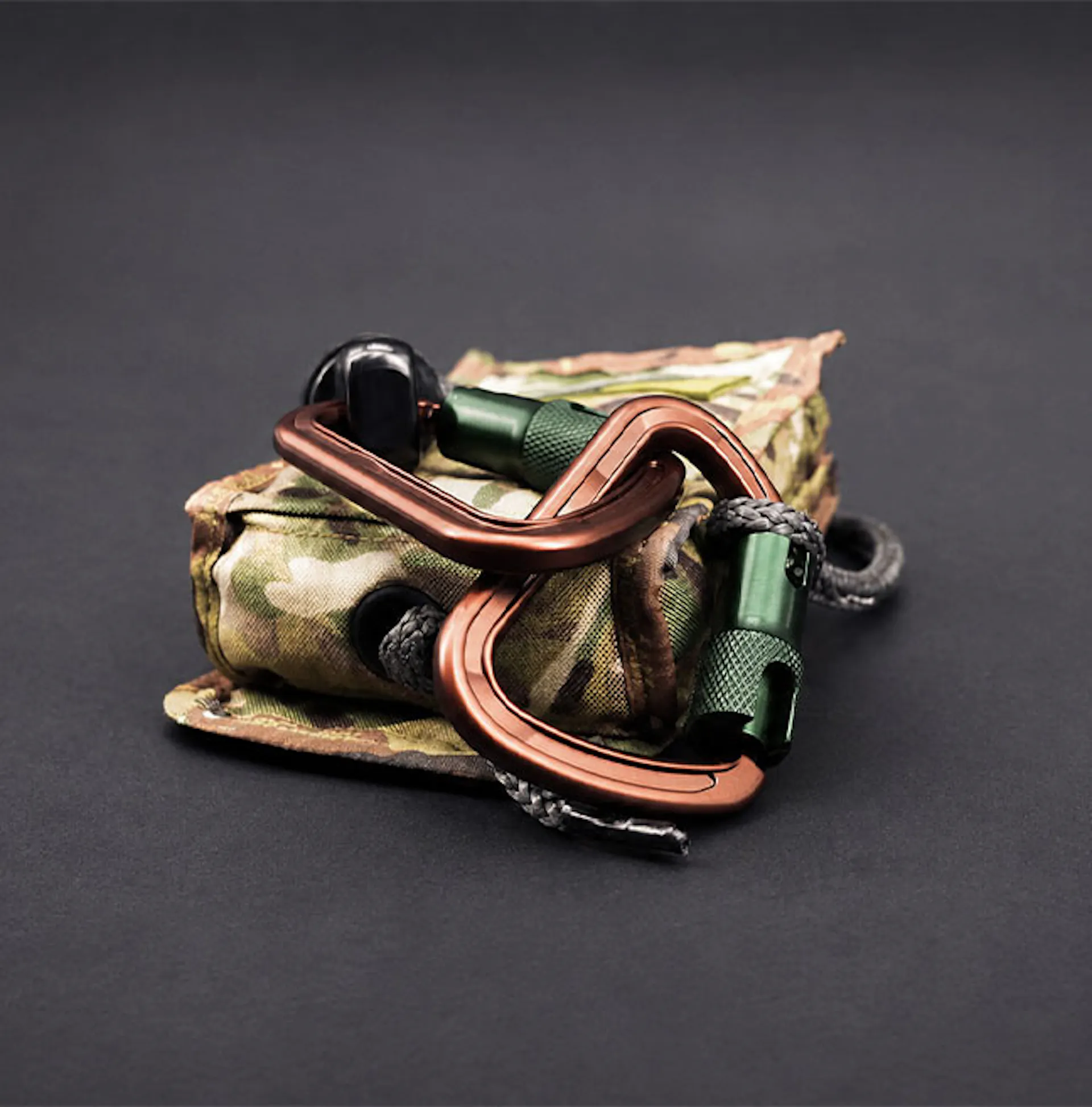

- Kits can be customized to content, rope length (up to 690 ft), and packaging
- Dual braking system, including both an active and passive brake
- Technora® rope engineered for strength retention in chemical exposures
- High-heat aramid fiber rope with a tensile strength exceeding 6,700 lbs (3,045 kg)
- Rope decomposition temperature: 500°C (932°F)
- ANSI minimum temperature rating: -40°C
Personal Evacuation & Assisted Rescue
The MCD supports both personal evacuation and assisted rescue—extending the system from a personal escape device to a versatile on-site rescue solution.
This capability enables personnel to:
- Transition from personal evacuation to assisted rescue
- Maintain control while lowering a casualty
- Deploy quickly in environments where immediate descent is required
Third Party Certifications
- Certified by TÜV SÜD to CE EN 341:2011/2D
- Certified by UL to ANSI/ASSP Z359.9-2021
- Available in NFPA-compliant configurations for emergency escape and rescue applications
Performance Specifications
MCD-G
- ANSI load rating: 130 lbs – 310 lbs to 180 meters
- EN load rating: 60 kg – 125 kg to 180 meters
MCD-G+
- ANSI load rating: 130 lbs – 310 lbs to 210 meters
- EN load rating: 60 kg – 125 kg to 210 meters
- EN load rating: 60 kg – 141 kg to 130 meters
MCD® Fire Escape System
US ARMED FORCES
The MCD is designed for self-descent, assisted descent, gear lowering, evacuation, and assisted rescue operations.
Its hands-free braking system enables tactical positioning by freeing both hands for critical tasks, including weapon deployment.
The MCD can be deployed from both moving and static structures and is suitable for use in urban, wooded, and mountainous environments.
FIRST RESPONDERS & SWAT TEAMS
The MCD is utilized by first responders and SWAT officers for self-descent, assisted descent, gear lowering, evacuation, and assisted rescue.
Its hands-free braking system allows for tactical positioning, freeing both hands to carry out critical objectives, including weapon deployment.
The MCD can be deployed from both moving and static structures and is suitable for use on any elevated structure, including buildings and bridges.
For fire service applications, explore our NFPA-certified MCD Fire Escape System.
- 3rd party certified by UL as meeting NFPA 2500, Standard for Operations and Training for Technical Search and Rescue Incidents and Life Safety Rope and Equipment for Emergency Services, Edition 2022.
US NATIONAL FOREST SERVICE
The MCD is utilized by United States Forest Service personnel for self-descent, assisted descent, gear lowering, evacuation, and assisted rescue.
Its hands-free braking system allows for tactical positioning, freeing both hands for critical tasks.
The MCD can be deployed from both moving and static structures and is suitable for use in wooded and mountainous environments.
SECURITY EQUIPMENT
The MCD is specialized security officer equipment designed for self-descent, assisted descent, gear lowering, evacuation, and assisted rescue. This device enables a controlled descent with a hands-free braking system.
The MCD provides a reliable means of escape in high-risk situations when standard exits are unavailable or compromised.
It is particularly suited for urban environments, including hotels, office buildings, and other high-rise structures.
Women Owned Small Business
Since 2002, our female-led team has delivered innovative, life-saving technologies to industries worldwide, including aerospace, energy, and construction.
Custom Solutions
TSL provides a full range of consulting services—from safety assessments to custom product design—and is trusted by leading organizations such as Bell Helicopter, GE, and Duke Energy.
Certified
ISO 9001:2015 certified across multiple domains, including Rescue Training, Rescue System Design, Fall Protection Equipment, and Rescue Consulting Services.
Rooted in the mission of saving lives.
Inspired by the tragic events of September 11, 2001, Diane Waghorne felt a profound calling to develop safer ways for people to evacuate from perilous situations. Her research led her to a device designed for emergency descent in dangerous conditions. Recognizing its life-saving potential, Diane acquired the patent for the Military Compact Descender (MCD) and brought its manufacturing to North Texas.
Driven by her passion for incident prevention and her unwavering commitment to safety across all industries, Diane established Tech Safety Lines (TSL) as a trusted leader in rescue solutions.
Today, Tech Safety Lines operates from two training centers in the Dallas–Fort Worth area, with more than 50,000 rescue kits deployed in over 35 countries worldwide.
